K-Coupling® Product
50366A1
5803 Series
5803 6MM X 6MM
Dimensions & Tolerances
| A | 48.25 ± 2.3 |
| B | 57.15 ± 3.175 |
| C | 28.6 ± .4 |
| D | 11 ± .75 |
| E | 52.83 ± 1.5 |
| Set Screw | M.6 |
Bore Sizes
| Left | 6 mm |
| Right | 6 mm |
Capacity
3.16 Nm
Max. Misalignment
15° Angular
4.75mm Parallel
Hub Material
Zinc Plated
Weight
0.381 lbs / 172.8 g
HP Torque

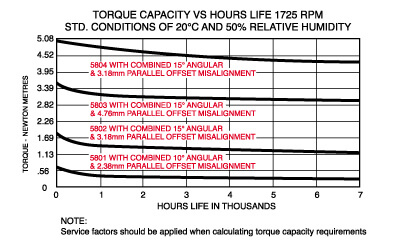

Torque Capacity
